DHR H200 Series

DHR H200 Series

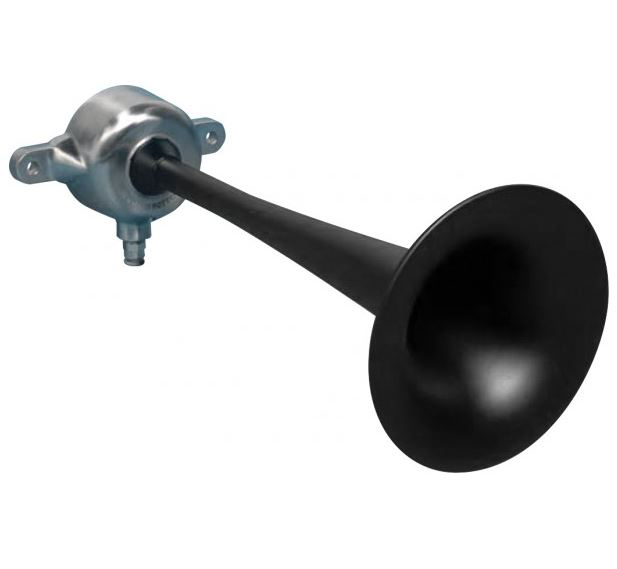

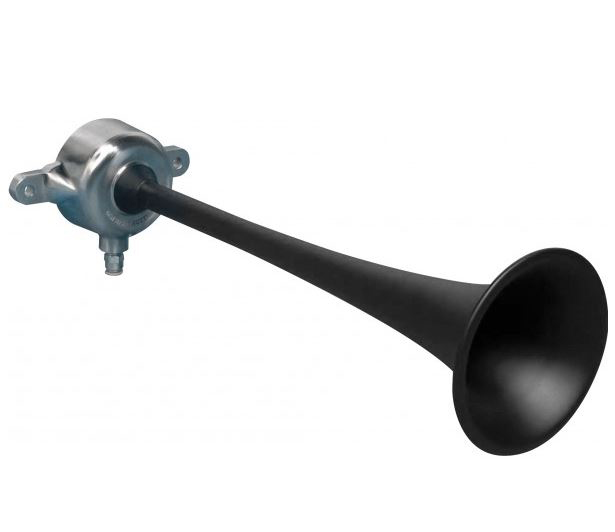

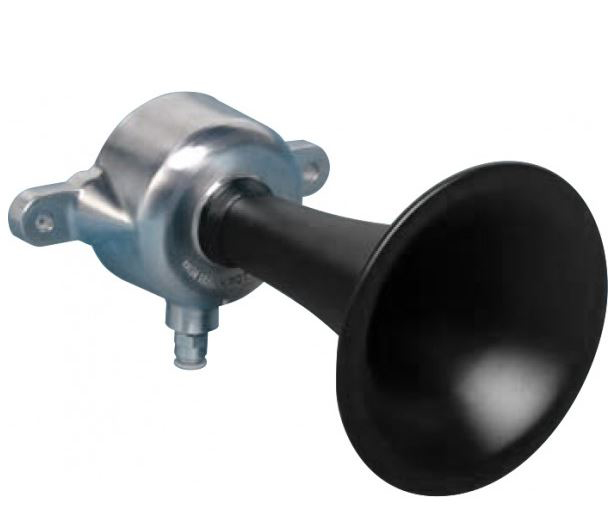

A very robust Air horn for the maritime, industrial or railway acoustic signalling purposes. Suitable for all kinds of (seagoing) vessels like workboats and ferries.  A stainless steel membrane housing with brass horn.

Quote
Maintenance friendlyEasy installation
High quality materialsFactory adjusted frequency

Recently viewed

Application
Workboats
Ferries
Industrial signalling
Security and alarm signalling
Railway industry

Materials
Chrome plated brass horn painted matt black
Stainless steel 316 membrane housing

Air consumption
2-3,5  l/s at 2 - 10 bar
This is an air horn, which means that an on board compressor with storage tank is needed in order to make the horn function.

Connection
Push in fitting for Ø8x6 air hose

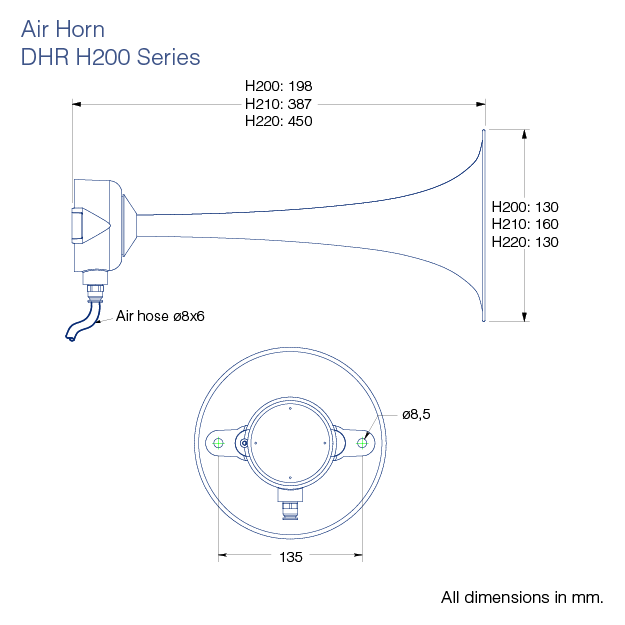

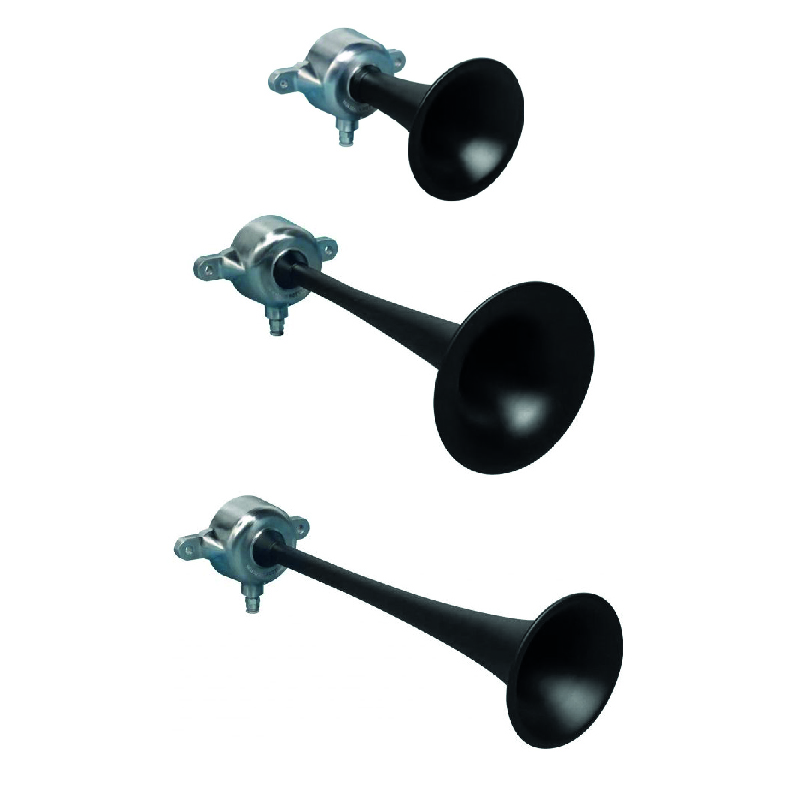

Horn

Length

Diameter

Weight

Fundamental frequency

Sound pressure level

Article code

H200

198 mm

130 mm

1.2 Kg

660 Hz

116 - 138 dB(A)

20001

H210

387 mm

160 mm

1.4 Kg

377 Hz

116 - 132 dB(A)

20002

H220

450 mm

130 mm

1.4 Kg

307 Hz

116 - 132 dB(A)

20003



SKU:
20001
/
Categories: DHR Marine, Air Horns
