DHR180CB

DHR180CB

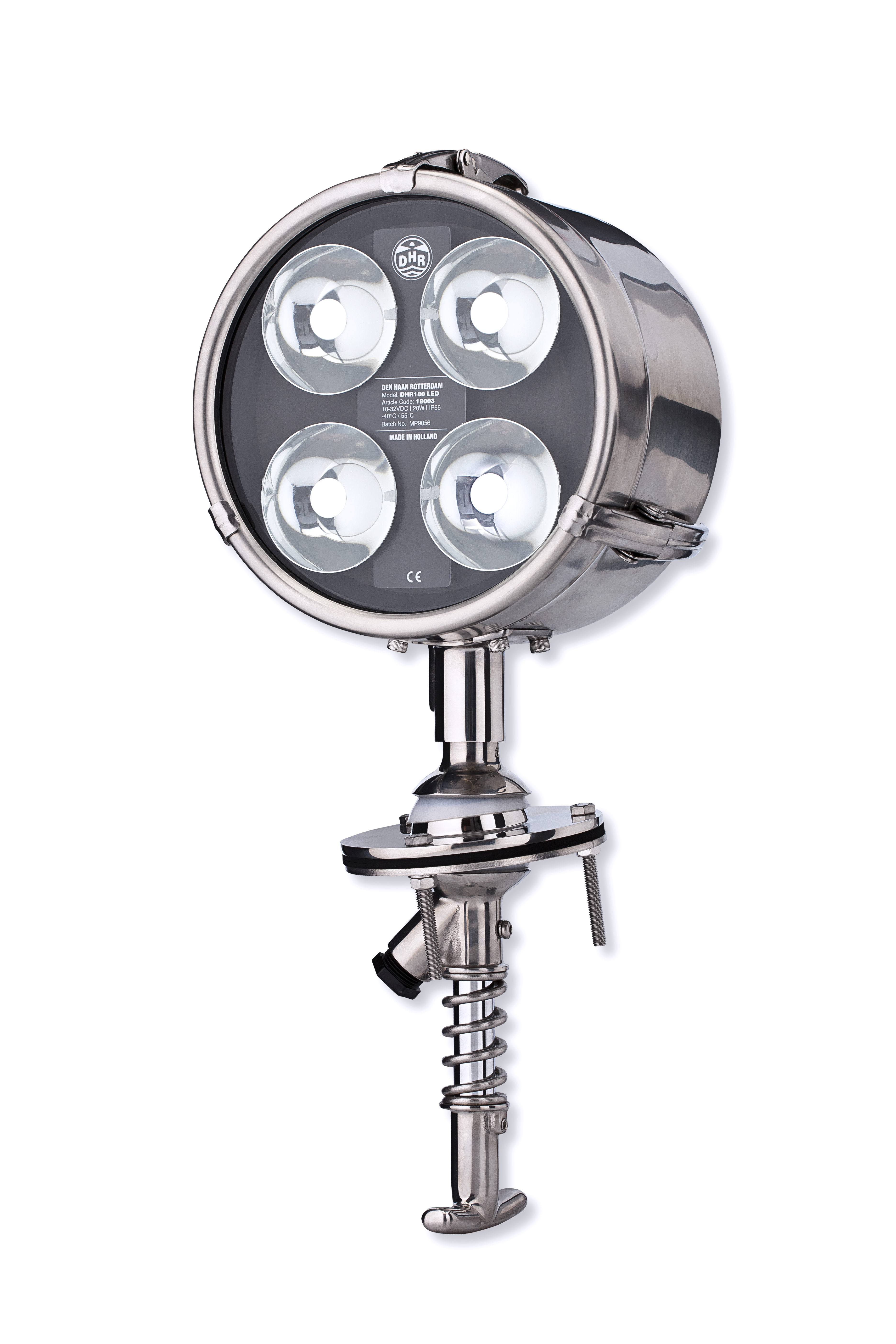

The DHR180 Searchlight is the most compact searchlight manufactured by DHR. Made of brushed  316L stainless steel with a 10V - 32V LED insert and a clear white beam. The ball joint cabin control is used for operation from the wheelhouse. Because of its relatively small size it is very suitable for vessel low in height.

 Quote
Excellent opticsRobust design
Narrow beamNo noise interference

Recently viewed

Materials
Brushed stainless steel 316 housing
Chrome plated brass handle
All other materials are corrosion resistant and non-magnetic

Weight
Housing 3.2 Kg
Extension tube 250mm 0.25 Kg
Extension tube 330mm 0.35 Kg
Extension tube 500mm 0.50 Kg

Extension
Stainless steel extension tubes  in 250, 330 and 500mm available

Optics
LED insert

Protection class
IP56


Model

Voltage

Lamp base

Power

Range at 1 Lux

Divergency at 50%

Light intensity

Article code

Ball joint cabin control*

10-32VDC

Click-on terminal

TBA

TBA TBA TBA 180CB-LED





















Available extension tubes

Length













Article code

Extension tube 250mm













180CC025

Extension tube 330mm













180CC033

Extension tube 500mm













180CC050









  Manual DHR150/180 CB < Available shortly>



SKU:
180CB-led
/
Categories: DHR Marine, Searchlights
