DHR35
The most compact conventional navigation light using incandescent bulbs. Ideal for smaller seagoing and inland navigation vessels up to 20 meters in length.
 | Robust design |  | Waterproof IP56 |
 | MED 2014/90/EU Wheelmark |  | Maintenance friendly |
 | Bulb Bay15d |  | 12/24 VDC 25W |
Recently viewed
Application
Sea-going vessels with a length less than 20m.
Small inland navigation vessels
As signalling light for inland navigation
Materials
Matt black polycarbonate, reinforced with fibreglass.
Corrosion free, seawater resistant and non-magnetic.
Polycarbonate Fresnel lens, shock resistant.
Wiring
PG9 Cable gland from below

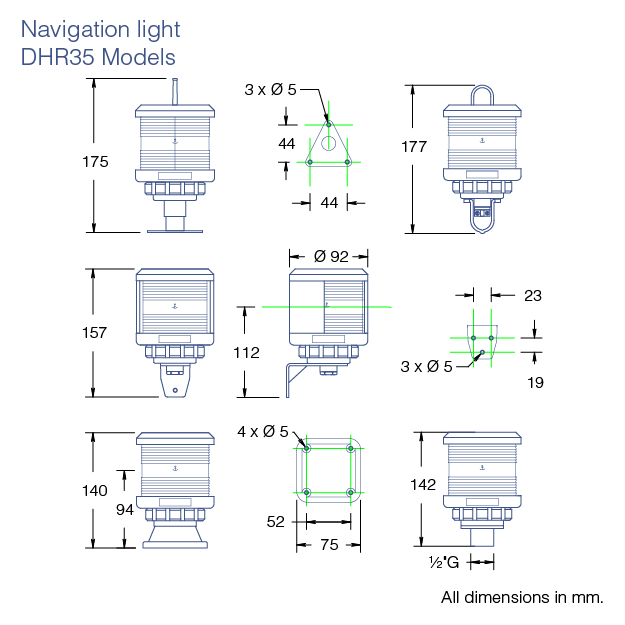

Mounting

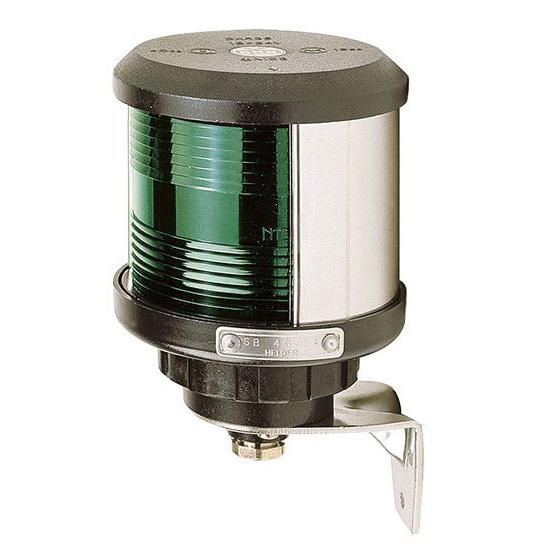

Base or side mounting for sector lights.

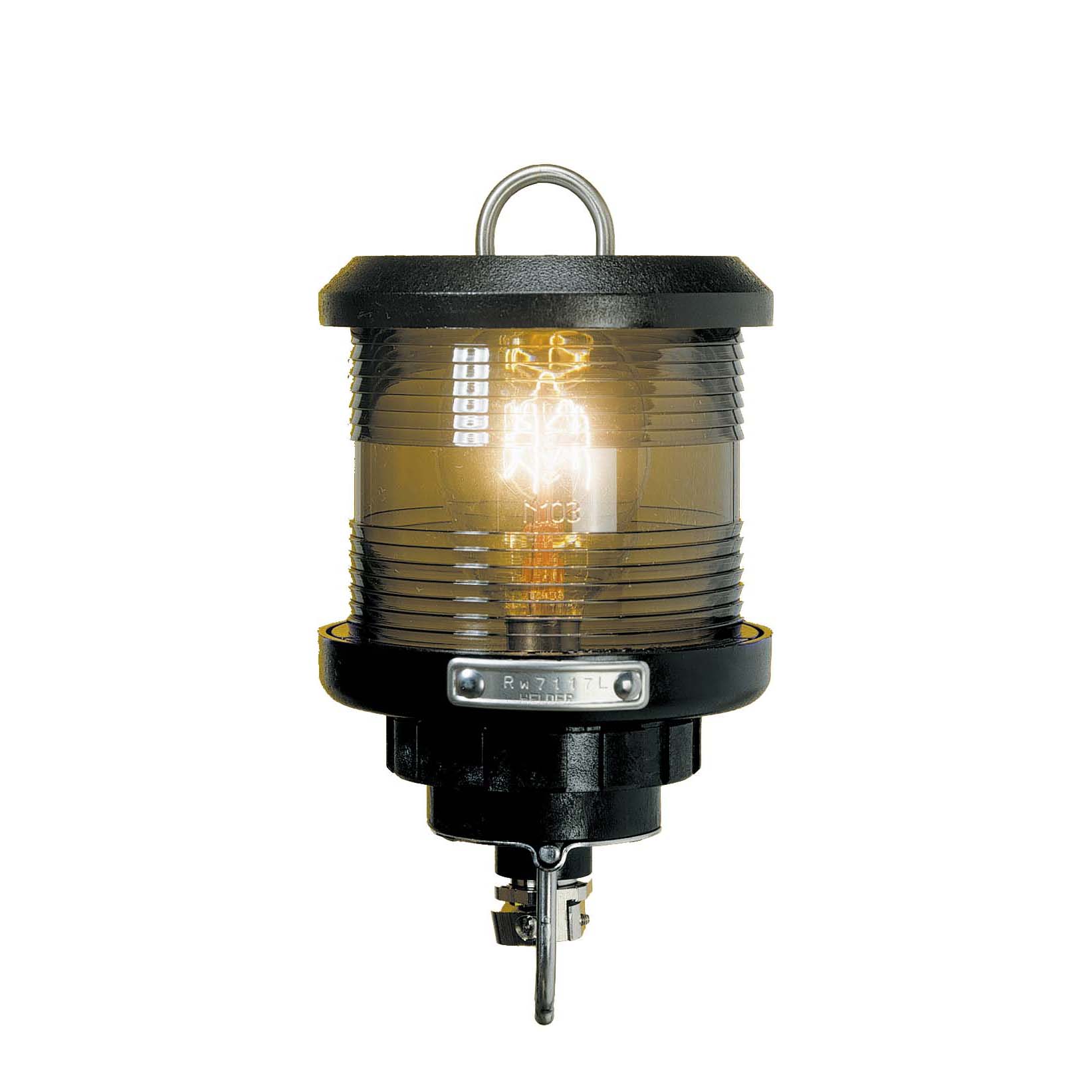

Base or pipe mounting or hoistable for all-round lights.
Weight
0.3Kg
Approval
MED 2014/90/EU
Visibility
2 to 3 N.M.
Protection class
IP56
|
|
|
|
|
Article codes |
||
|
Sector |
Min. visibility |
Lampholder |
Approval |
Base Mounted |
Side Mounted |
|
|
Starboard |
2 N.M. |
Bay15d |
COLREG’72 – RPR/BPR |
SB35V |
SB35Z |
|
|
Port |
2 N.M. |
Bay15d |
COLREG’72 – RPR/BPR |
BB35V |
BB35Z |
|
|
Masthead |
3 N.M. |
Bay15d |
COLREG’72 – RPR/BPR |
TW35V |
TW35Z |
|
|
Stern |
2 N.M. |
Bay15d |
COLREG’72 – RPR/BPR |
HW35V |
HW35Z |
|
|
Towing |
2 N.M. |
Bay15d |
COLREG’72 – RPR/BPR |
HGL35V |
HGL35Z |
|
|
Bi-Colour |
2 N.M. |
Bay15d |
COLREG’72 – RPR/BPR |
TKL35V |
TKL35Z |
|
|
Tri-Colour |
2 N.M. |
Bay15d |
COLREG’72 – RPR/BPR |
DKL35V |
- |
|
|
Steering |
- |
Bay15d |
- |
- |
ST35Z |
|
|
|
|
|
|
|
||
|
|
|
|
|
Article codes |
||
|
All-round lights |
Min. visibility |
Lampholder |
Approval |
Base Mounted |
Pipe mounted |
Hoistable |
|

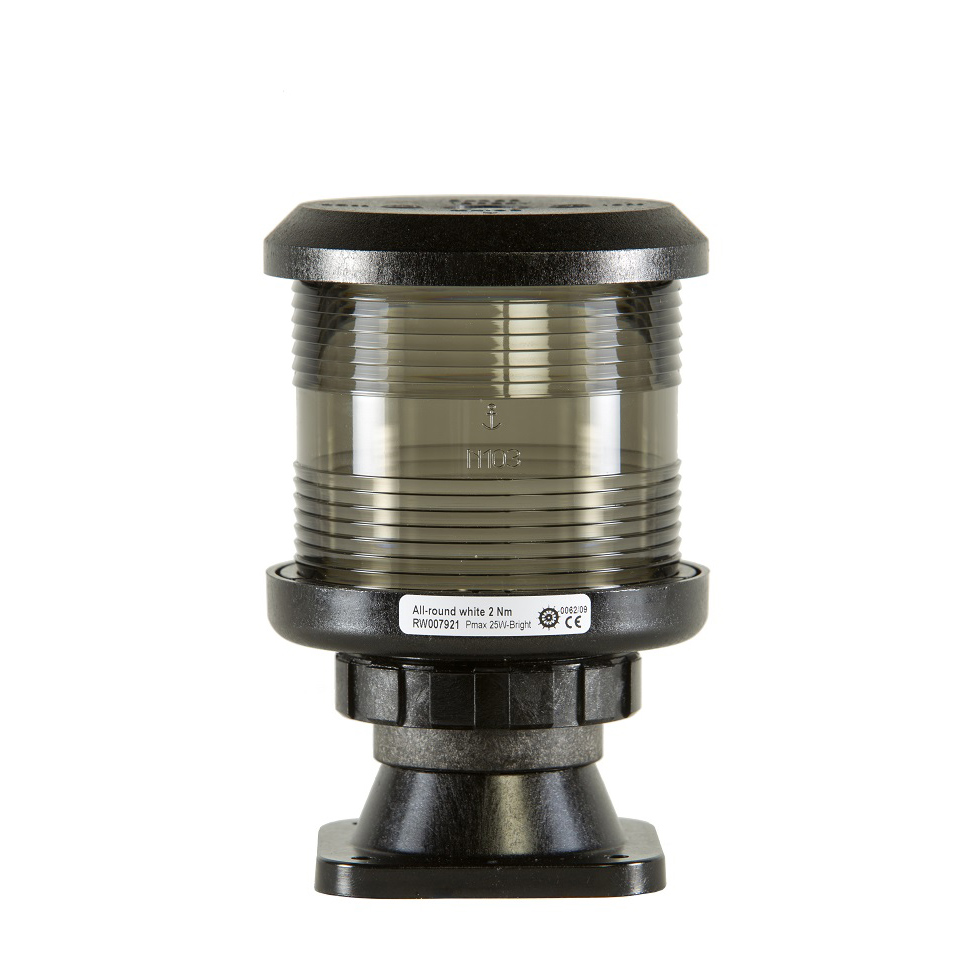

All-round white |
2 N.M. |
Bay15d |
COLREG’72 – RPR/BPR |
RW35V |
RW35P |
RW35H |
|
All-round red |
2 N.M. |
Bay15d |
COLREG’72 – RPR/BPR |
RR35V |
RR35P |
RR35H |
|
All-round green |
2 N.M. |
Bay15d |
COLREG’72 – RPR/BPR |
RGR35V |
RGR35P |
RGR35H |
|
All-round yellow |
2 N.M. |
Bay15d |
COLREG’72 – RPR/BPR |
RGL35V |
RGL35P |
RGL35H |
|
All-round blue |
1 N.M. |
Bay15d |
RPR/BPR |
RBL35V |
RBL35P |
RBL35H |
|
All-round opal |
- |
Bay15d |
- |
ROP35V |
ROP35P |
ROP35H |
