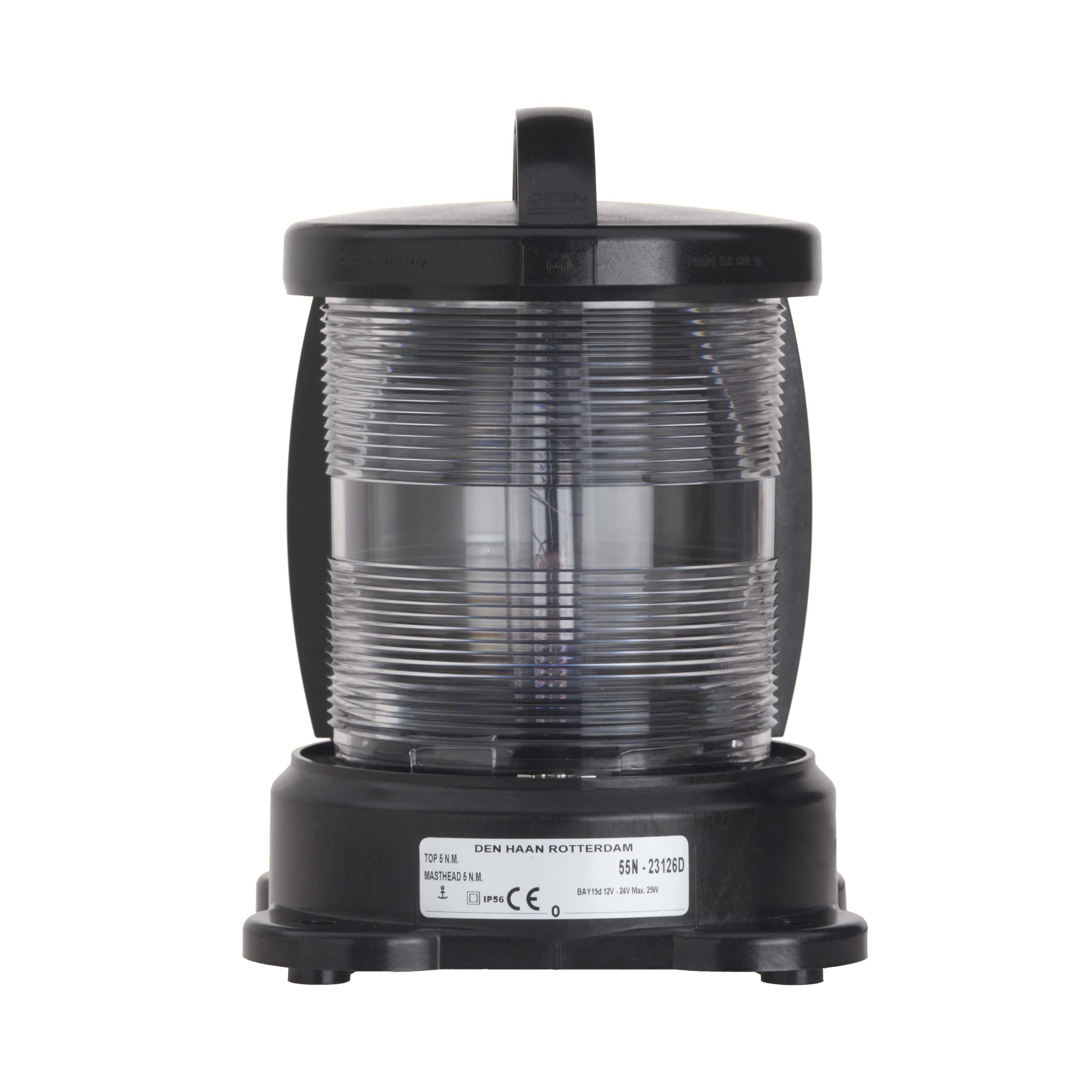

DHR55N
 | Robust design |  | Waterproof IP56 |
 | MED 2014/90/EU Wheelmark |  | Maintenance friendly |
 | Bulb Bay15d |  | 12/24 VDC 25W |
Recently viewed
Application
Sea-going vessels with a length less than 50m.
Inland navigation vessels above 20 meters
NATO codification
Materials
Matt black polycarbonate, reinforced with fibreglass.
Corrosion free, seawater resistant and non-magnetic.
Polycarbonate Fresnel lens, shock resistant and interchangeable.
Wiring
PG13 Cable gland from below or side

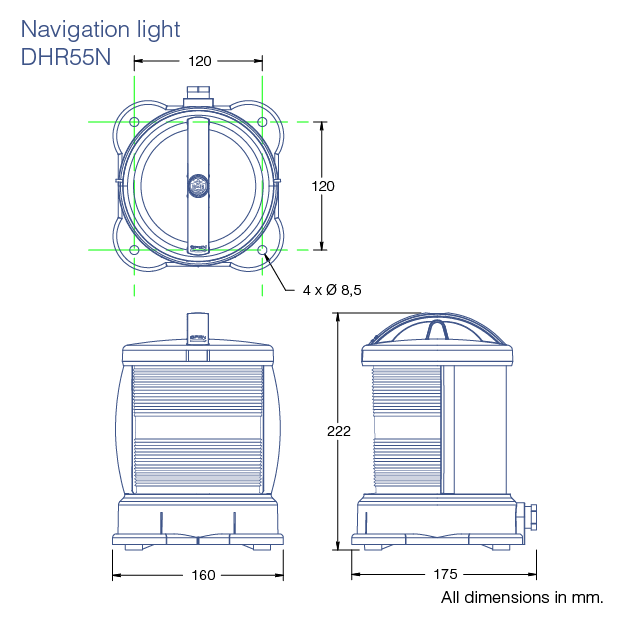

Mounting
Base
Conversion kit for hoisting or side bracket mounting available
Weight
Sector lights and 180° screened lights: 1.0kg
All-round lights: 0.8kg
Approval
MED 2014/90/EU
Visibility
2 to 5 N.M.
Protection class
IP56
Available models DHR55N
|
Sector |
Min. visibility |
Lampholder |
Approval |
Article codes |
|
|
Starboard |
2 N.M. |
Bay15d |
COLREG’72 – RPR/BPR |
55.01.00.00 |
|
|
Port |
2 N.M. |
Bay15d |
COLREG’72 – RPR/BPR |
55.02.00.00 |
|
|
Masthead |
5 N.M. |
Bay15d |
COLREG’72 – RPR/BPR |
55.03.00.00 |
|
|
Stern |
2 N.M. |
Bay15d |
COLREG’72 – RPR/BPR |
55.04.00.00 |
|
|
Towing |
2 N.M. |
Bay15d |
COLREG’72 – RPR/BPR |
55.04.09.00 |
|
|
Panama steering light |
- |
Bay15d |
Narrow (Panama) canals |
55.10.00.05 |
|
|
|
|
|
|
|
|
|
All-round lights |
|||||
|
|
|
|
|
Article codes |
|
|
Sector |
Min. visibility |
Lampholder |
Approval |
All-round |
180° Screened |
|
All-round white |
2 N.M. |
Bay15d |
COLREG’72 – RPR/BPR |
55.06.00.00 |
55.06.01.80 |
|
All-round manoeuvring |
5 N.M. |
Bay15d |
COLREG’72 |
55.06.10.00 |
- |
|
All-round red |
2 N.M. |
Bay15d |
COLREG’72 – RPR/BPR |
55.07.00.00 |
55.07.01.80 |
|
All-round green |
2 N.M. |
Bay15d |
COLREG’72 – RPR/BPR |
55.08.00.00 |
55.08.01.80 |
|
All-round yellow |
2 N.M. |
Bay15d |
COLREG’72 – RPR/BPR |
55.09.00.00 |
- |
|
All-round blue |
1 N.M. |
Bay15d |
RPR/BPR |
55.10.00.00 |
- |
