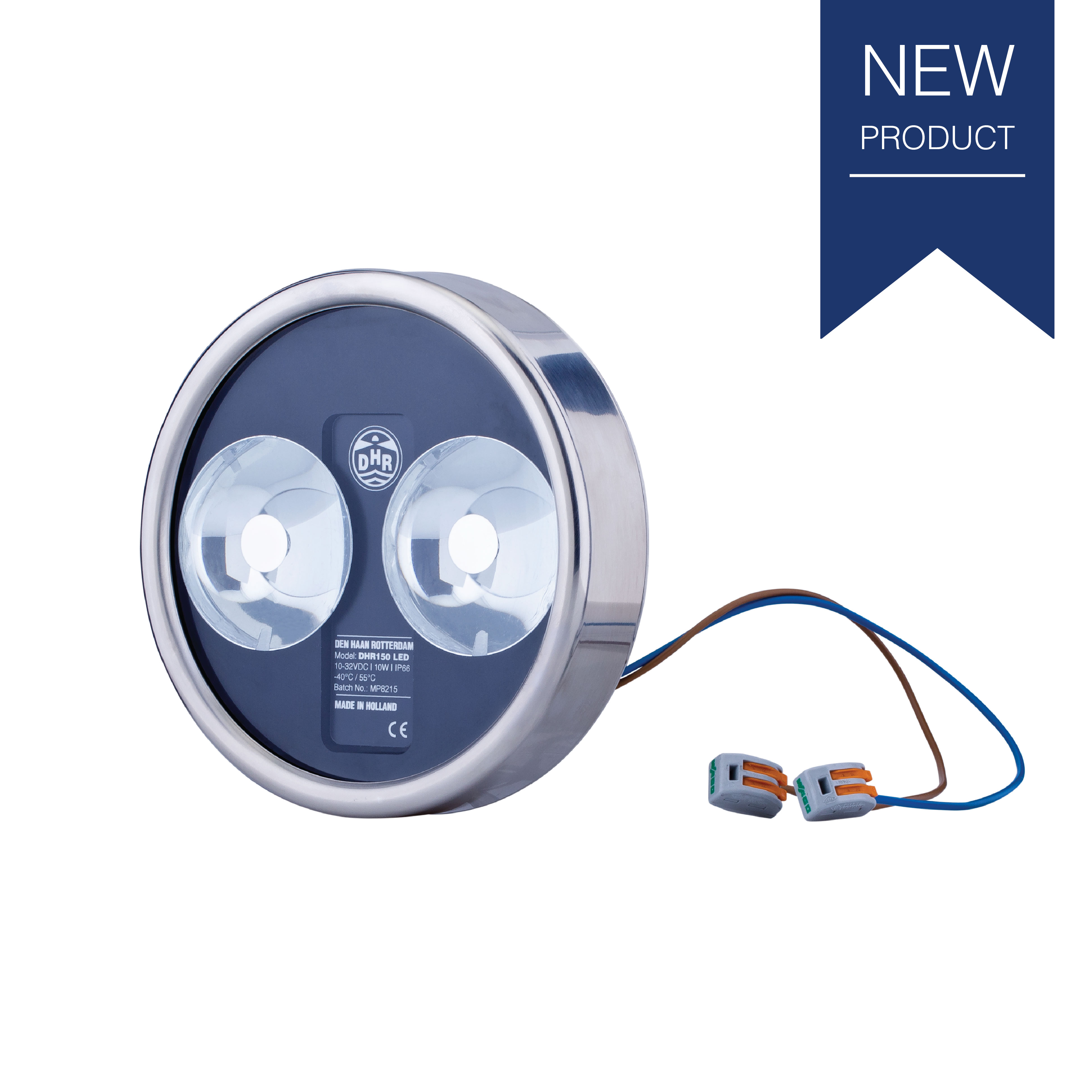

DHR 150 LED-insert

DHR 150 LED-insert

The DHR150-series searchlight is a Classic. Introduced in the 60’s it has been a popular fixture in the recreational boating ever since. Thanks to the evolvement of LED technology, DHR decided to develop a drop-in PAR46 LED replacement for the 150-series. No special modifications are needed for installation. The existing wiring can be connected to the LED-insert - without the need for extra tooling. Compared to the 100-250 Watt incandescent equivalent, it boosts a luminous intensity of 200.000 Candela (measured) using only 10W of energy. A performance guaranteed over a voltage range of 10 - 32 VDC. Additionally, DHR selected a unique optical design to realize a clear focused spot, while keeping stray light to a minimum. An extreme narrow bundle makes the 150LED-replacement the best performing compact marine searchlights of its class.

Direct replacement the following GE Sealed beam lamps:

PAR46 Sealed beam GE4537-2
PAR46 Sealed beam GE4553

Excellent opticsRobust design
Narrow beamNo noise interference

Recently viewed

Materials
Brushed stainless steel 316L housing
All other materials are corrosion resistant and non-magnetic

Weight
LED-1,00 Kg


Application
Fits DHR150 series searchlights.

Direct replacement for:

PAR46 Sealed beam GE4537-2
PAR46 Sealed beam GE4553

Optics
LED Insert

Protection class
IP66

Model

Voltage

Lamp base

Power

Range at 1 Lux

Divergency at 50%

Light Intensity

Article code

LED insert

10-32VDC

Click-on terminal

10W

447m

3,5° x 2,5°

200.000 cd

150LED-INSERT























Leaflet 150LED insert Range overview
