DHR80 LED

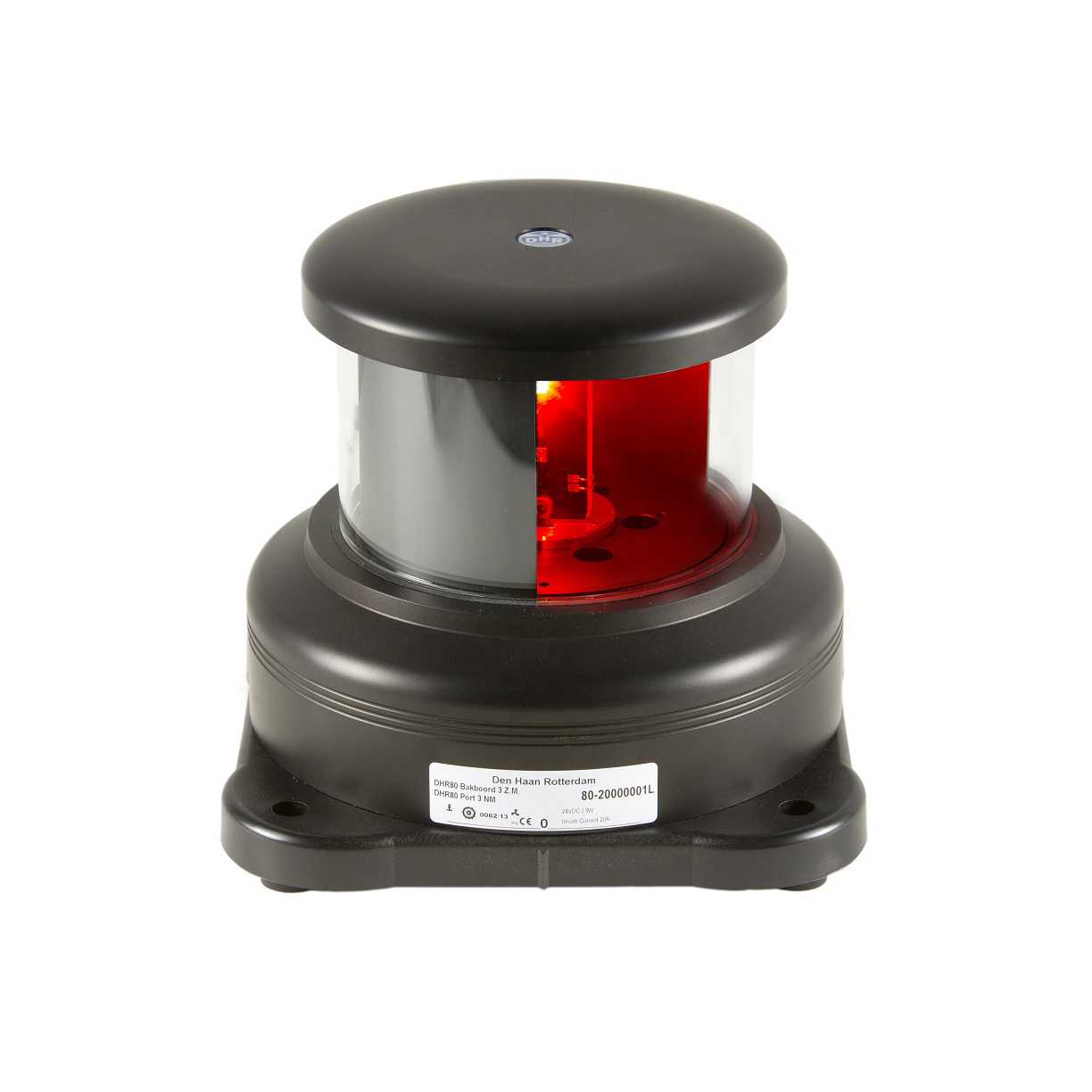

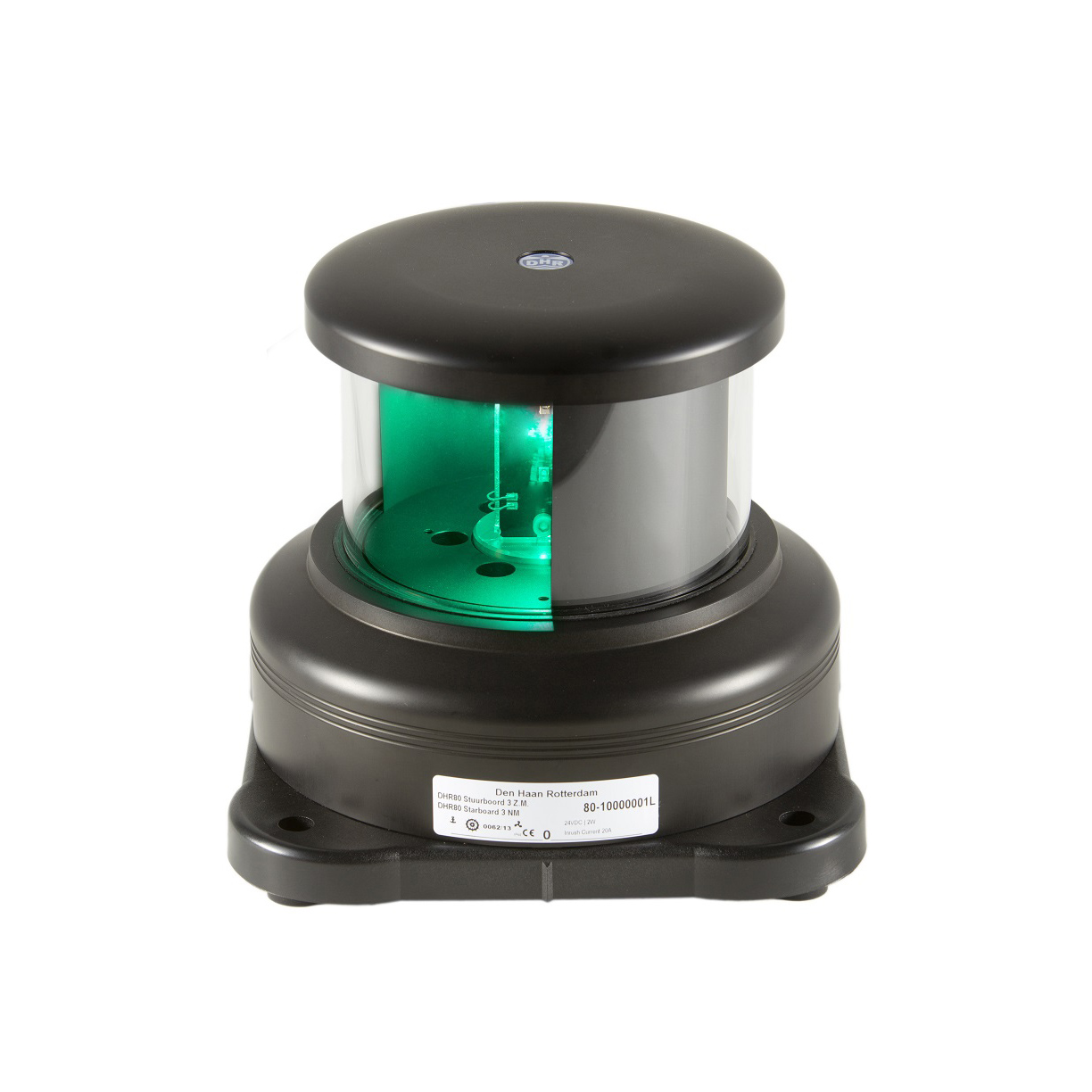

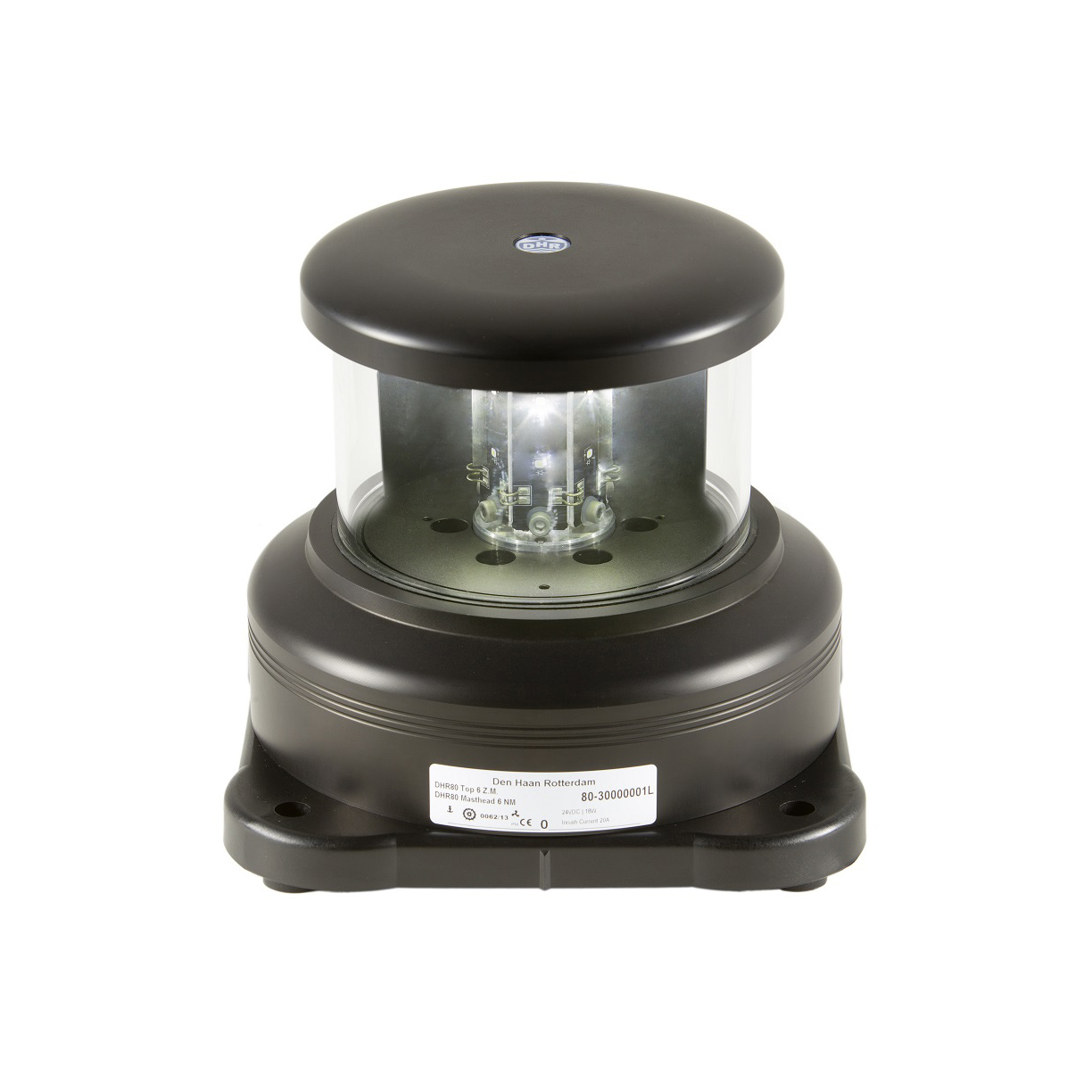

The DHR80 LED navigation lights are made for vessels with a lenght of over 50 meters.Its modern, innovative and rugged design makes the DHR80 LED yet another standard in navigation lighting. The use of automotive LEDs and high quality components assures the most robust and durable product in its class. Interference noise does not occur and with a 50,000 hrs lifetime it reduces expensive maintenance costs to a minimum. On top of this, the DHR80 LED is unique in its easy serviceability, which makes it the best choice for safety in all weather conditions.
 | Robust design |  | No noise interference |
 | Waterproof IP66 |  | MED 2014/90/EU Wheelmark |
 | Maintenance friendly |  | 24 VDC (-20% / +30%) Max. 20W |
 | Main & spare LED modules |  | Extended operational lifetime |
Recently viewed
Application
Sea-going vessels over 50m in length.Materials
Black, hard anodised seawater resistant aluminium
POM base to prevent galvanic corrosion
Borosilicate glass lens
Epoxy potted LED driver for maximum protectionWeight
Sector lights and 180° screened: 3.5 Kg
All round lighta: 3.4 KgApproval
MED 2014/90/EU
RMRS
USCGLifetime
50.000 hoursVisibility
3 to 6 N.M.Operating temperature
-25 to 55°CProtection class
IP66Powersupply
24VDC
Available models DHR80LEDSectorMin. visibilityPowerArticle codes Starboard3 N.M.3W80.01.00.00 Port3 N.M.4,5W80.02.00.00 Masthead6 N.M.16W80.03.00.00 Stern3 N.M.3W80.04.00.00 Stern Red3 N.M.4,5W80.04.07.00 Towing3 N.M.4,5W80.04.09.00 All-round lights Article codesSectorMin. visibilityPowerAll-round180° ScreenedAll-round white3 N.M.3W80.06.00.0080.06.01.80All-round manoeuvring5 N.M.10W80.06.10.00-All-round red3 N.M.4,5W80.07.00.0080.07.01.80All-round green3 N.M.3W80.08.00.0080.08.01.80All-round yellow3 N.M.4,5W80.09.00.0080.09.01.80All-round blue2 N.M.3W80.10.00.00-
